Arrow Truck/Suv|Auto-12 x 20 x 7 ft Eggshell Carport
$197.00

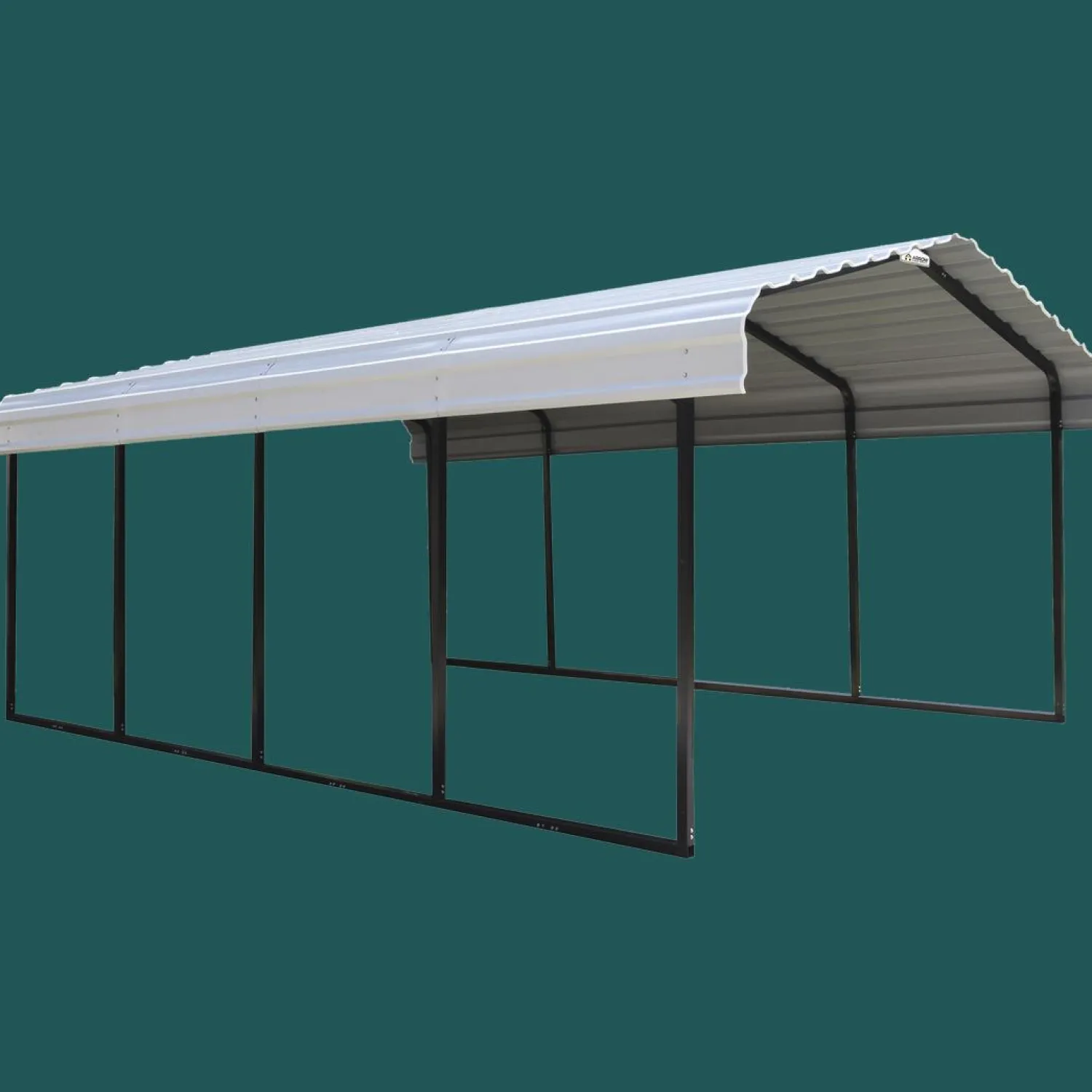

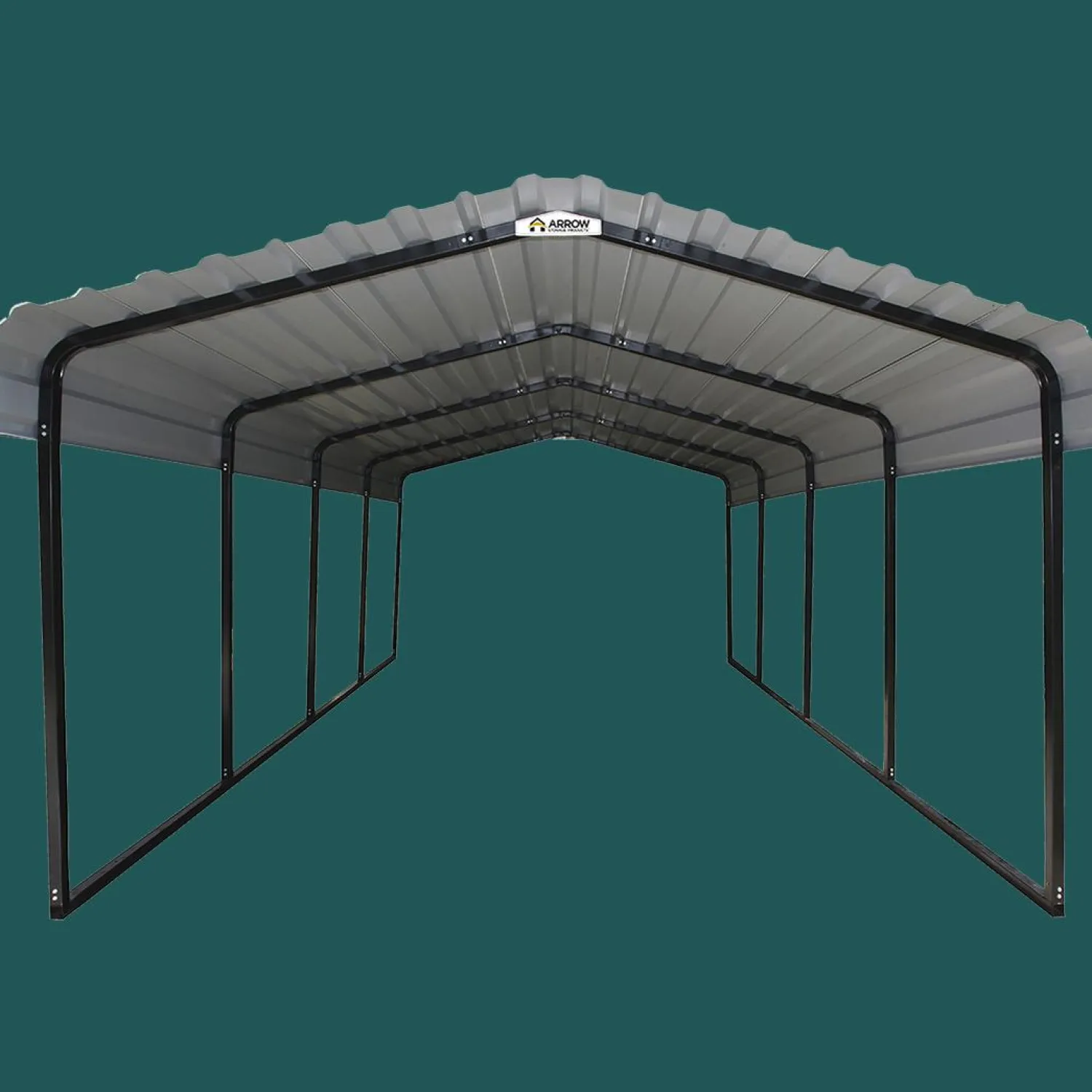

The 12 x 20 ft. Carport from Arrow is a newly re-designed Carport and multi-use shelter that is wind and snow rated for maximum protection against the elements! Our carport features a galvanized steel roof with horizontal panels, and an industrial steel frame that has been powder coated to resist corrosion and rust. This 12 x 20 ft. Carport has a wind speed rating of 100 MPH and a snow/ground load rating of up to 35 PSF. Rain or shine – it doesn’t matter. The Arrow 12 x 20 ft. Carport is a high-quality, steel structure that is perfect for protecting boats, vehicles, tractors and even outdoor picnic areas.
- Industrial grade steel frame resists corrosion
- The 29-gauge painted galvanized steel roof offers corrosion and rust resistance. The roof features horizontal panels and rounded eaves for additional protection from the elements
- Slip-fit frame connection for easier assembly
- This all steel Carport from Arrow has a wind speed rating of 100 mph and snow/ground load rating of 35 psf for tough protection against the elements
- Offers a 10-year limited warranty

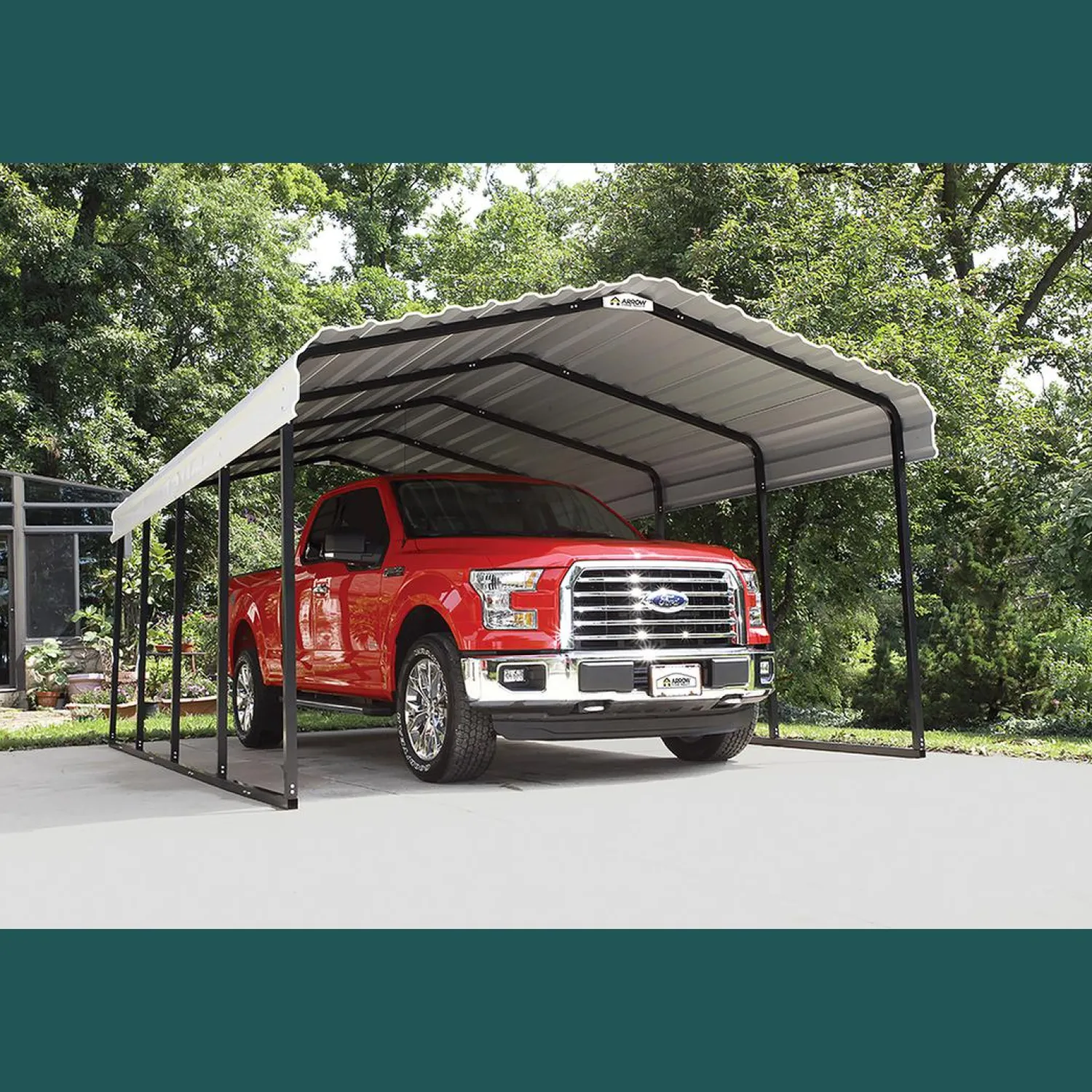

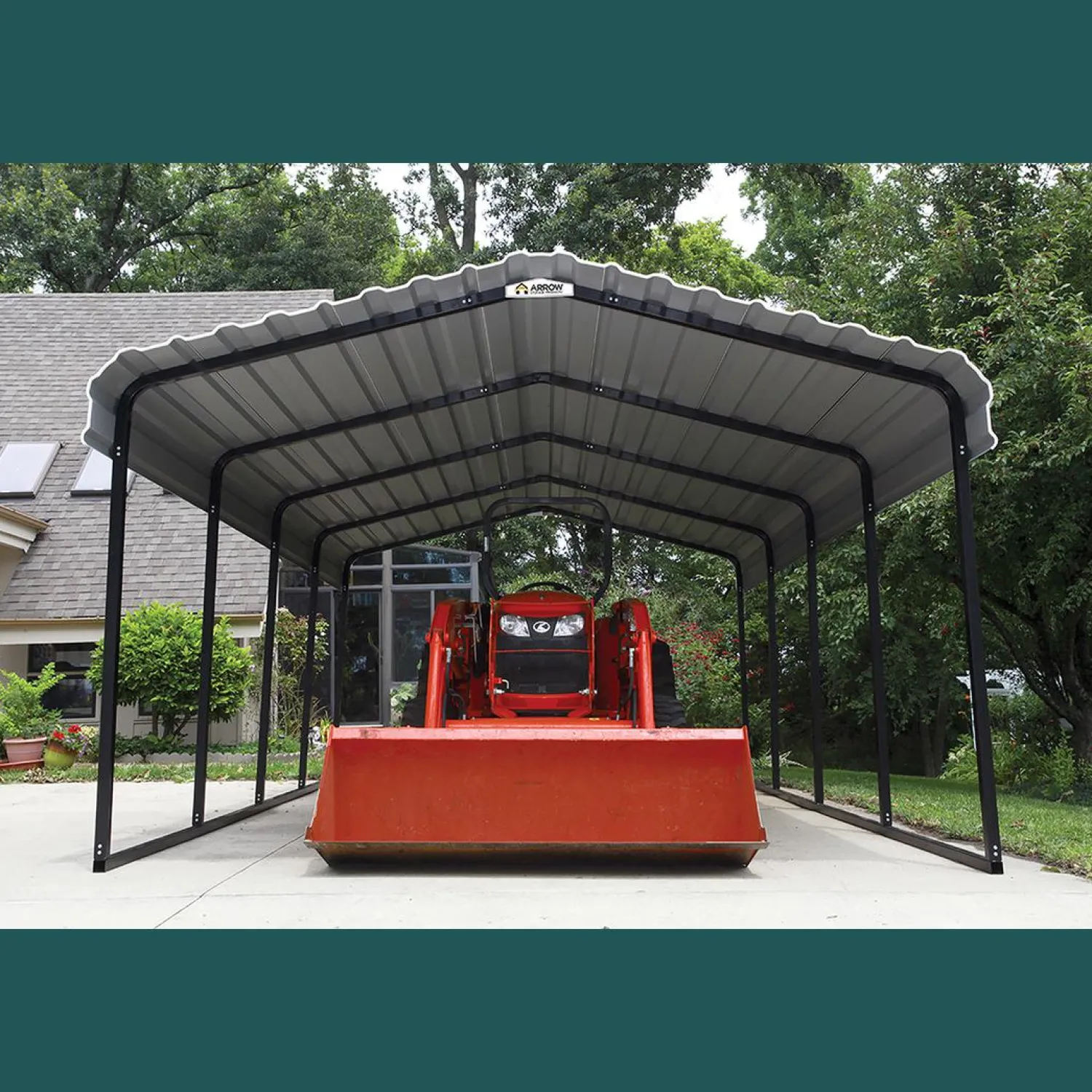

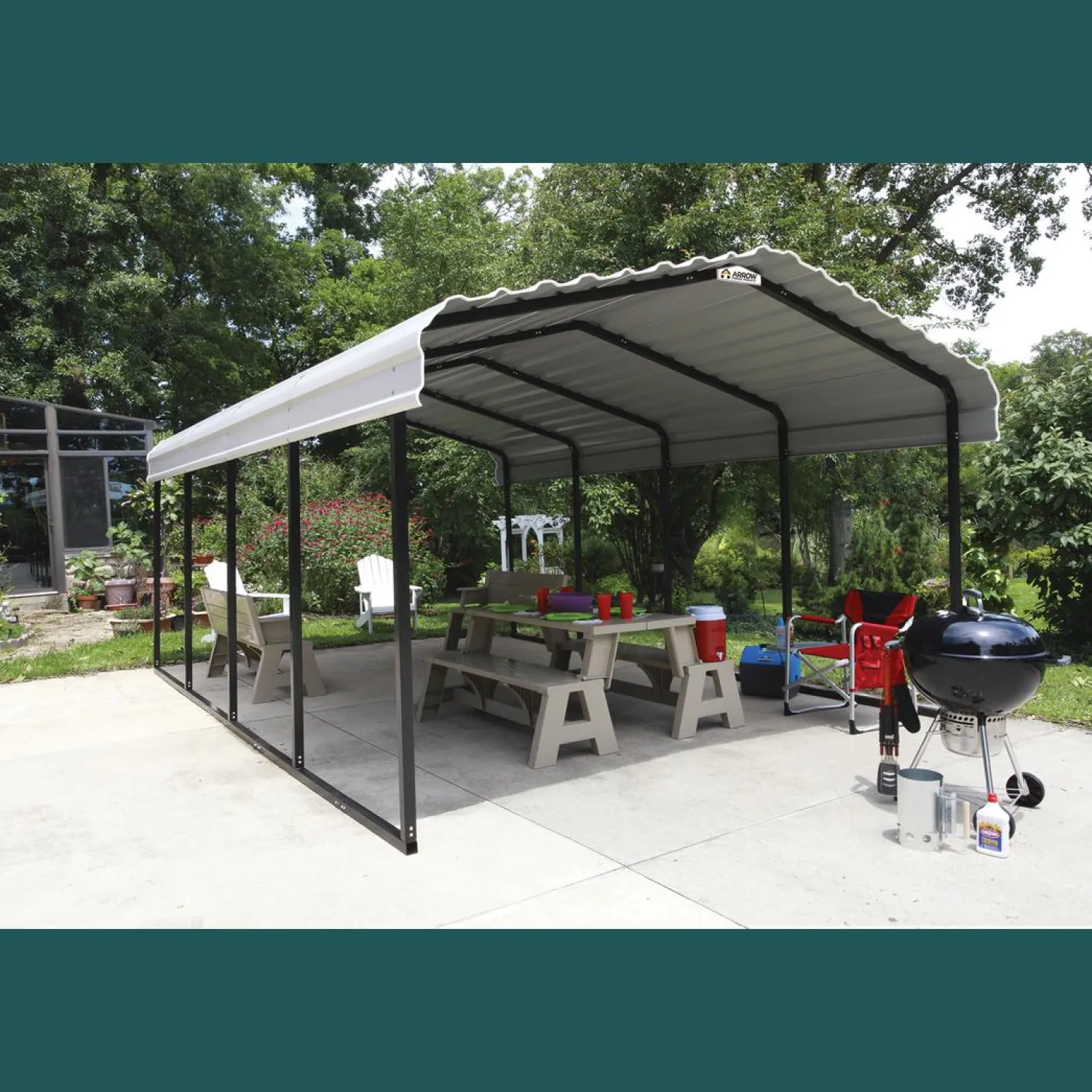

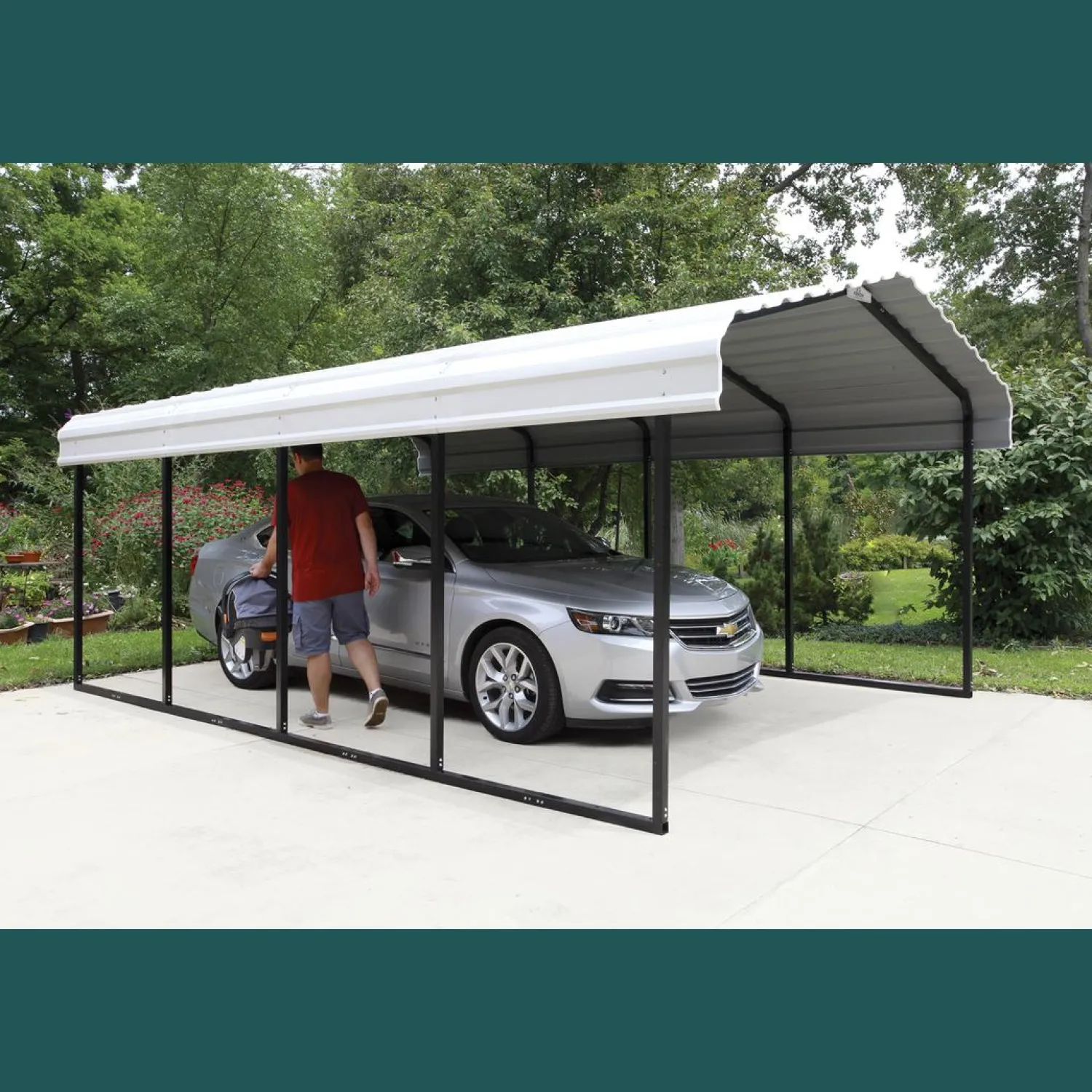

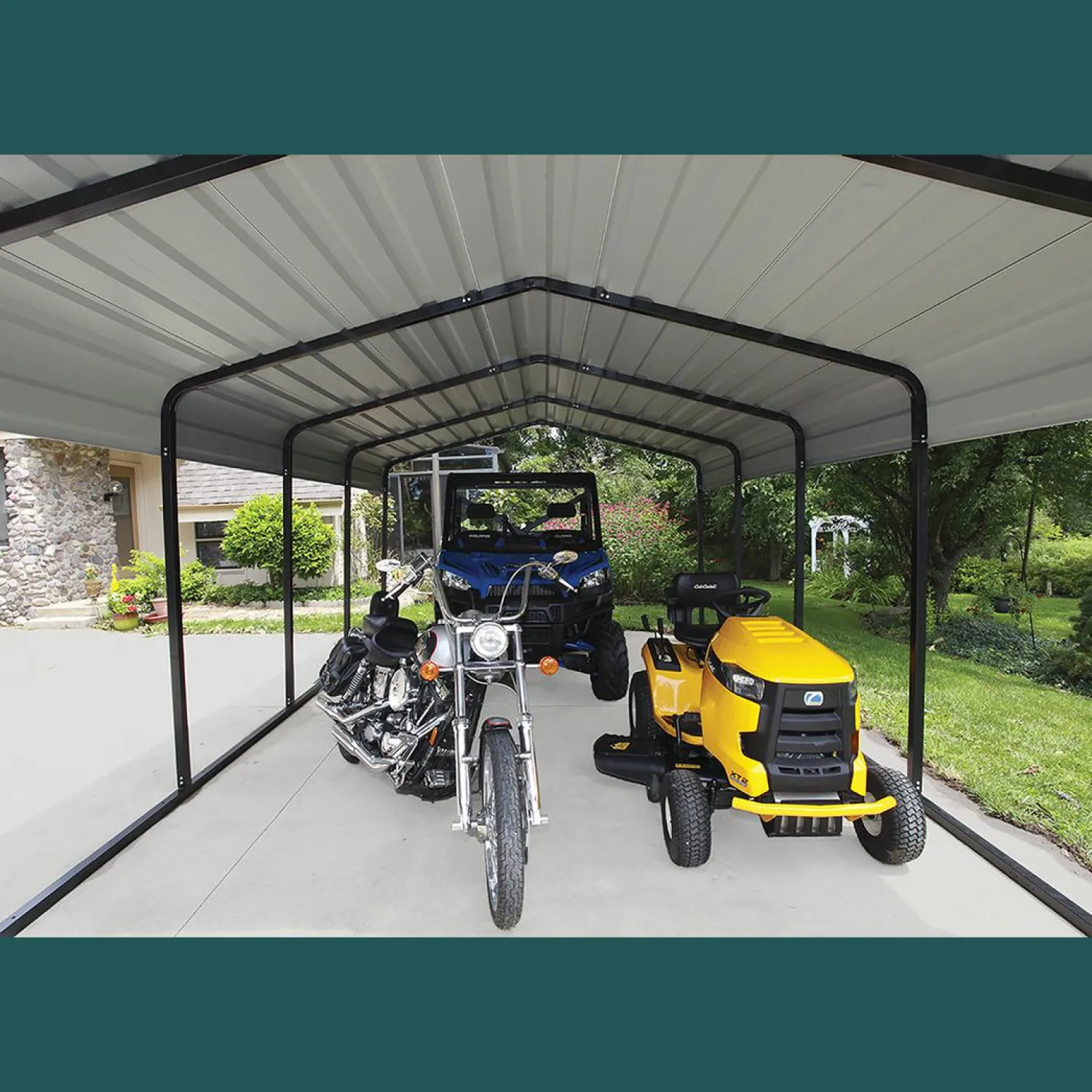

- The 12 x 20 ft. Carport from Arrow is a multi-use shelter that protects vehicles, boats, tractors, and even picnic areas.
- Offers up to 234 sq. ft./1792 cu. ft. of storage and shelter area
Manuals
Assembly Manuals
English French German Spanish Download PDF
Additional Resources
- Schematic
Specifications
| Product Details | |
|---|---|
| SKU | CPH122007 |
| Specifications | |
| Size | 20 x 12 x 7 ft. |
| Details | |
| Series | Arrow Carport |
| Roof Type | Peak |
| Color | Eggshell |
| Frame Color | Black |
| Assembly Required | Yes |
| Included Items | Roof Panels, Frame, Anchors, Hardware, Instructions |

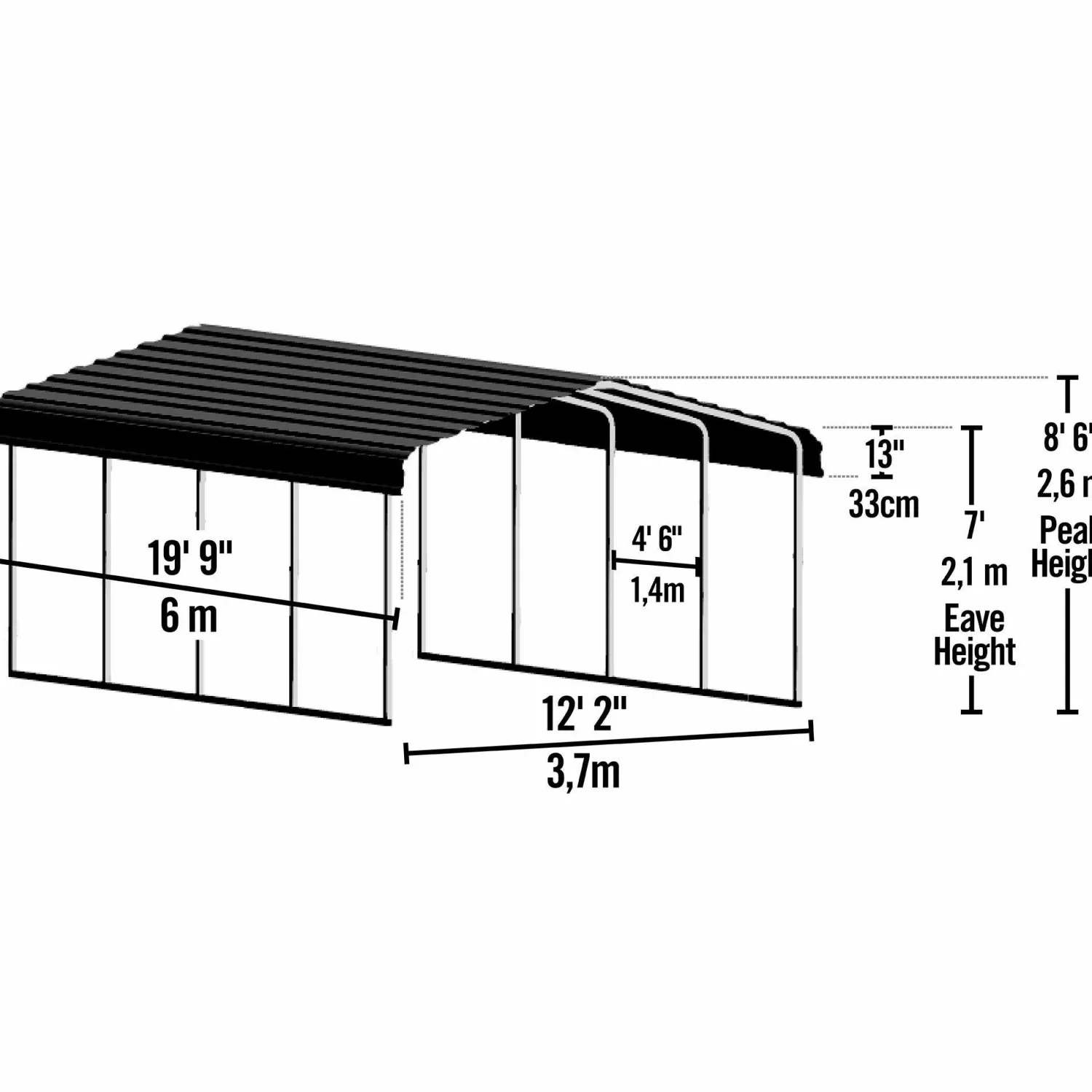

| Dimensions | |
| Width | 12 ft. |
| Length | 20 ft. |
| Height | 7 ft. |
| Total Storage Area | 219.86 sq. ft. |
| Total Storage Volume | 1614.95 cu ft |
| Assembled Exterior Dimensions Width | 12 ft. 2 in. |
| Assembled Exterior Dimensions Depth | 18 ft. 1 in. |
| Assembled Exterior Dimensions Height | 8 ft. 5 in. |
| Assembled Interior Dimensions Width | 11 ft. 8 in. |
| Assembled Interior Dimensions Depth | 18 ft. 1 in. |
| Assembled Interior Dimensions Height | 8 ft. 3 in. |
| Door / Entrance Height Outside | 0 |
| Wall Height | 84 in. |
| Peak Height | 8 ft. 6 in. |
| Warranty/Certifications | |
| Warranty | 10 Year Limited |
| Wind Speed Rating | 161 |
| Snow Load Rating | 171.0 |
| Water-Resistant | No |
